| Adding a Preview UI Control |
For displaying the document preview your filter requires a suitable control element.
When implementing the static internal preview, we simply leveraged the built-in Web browser control of SDL Trados Studio 2017 (see Modifying the File Type Component Builder). Depending on the native file format that needs to be displayed, a different control might be required. For example, for DOC files SDL Trados Studio 2017 uses a Microsoft Word Viewer control. In this exercise, we are (once again) going to use a Web browser control. However, this time we will not leverage the built-in Web browser control, since we would like to demonstrate how to add and configure a custom control element.

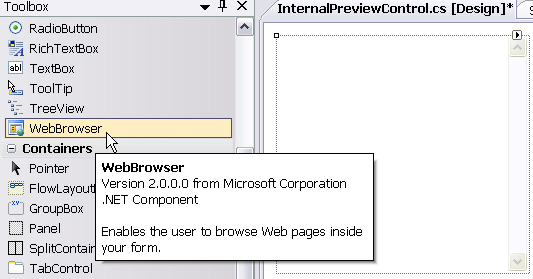

Start by adding a user control called e.g. InternalPreviewControl.cs to your project. From the Visual Studio toolbox add a Web browser control, and assign the name webBrowserControl to it.

For your preview control to be able to respond to events such as the user clicking a segment in the editor, scrolling to a segment, etc., your control needs to implement the following code:
using System; using System.Windows.Forms; using System.Security.Permissions; using Sdl.FileTypeSupport.Framework.IntegrationApi; using Sdl.FileTypeSupport.Framework.NativeApi; namespace Sdl.Sdk.FileTypeSupport.Samples.SimpleText.Preview { [PermissionSet(SecurityAction.Demand, Name = "FullTrust")] [System.Runtime.InteropServices.ComVisibleAttribute(true)] public partial class InternalPreviewControl : UserControl { string _activeSegId = String.Empty; string _jumpparagraphID = String.Empty; string _jumpsegmentID = String.Empty; bool _segmentSelectedFromBrowser = false; public event PreviewControlHandler WindowSelectionChanged; public InternalPreviewControl() { InitializeComponent(); //set the properties of the webbrowser component webBrowserControl.AllowWebBrowserDrop = false; webBrowserControl.IsWebBrowserContextMenuEnabled = false; webBrowserControl.WebBrowserShortcutsEnabled = false; webBrowserControl.ScriptErrorsSuppressed = true; webBrowserControl.AllowNavigation = false; webBrowserControl.ObjectForScripting = this; webBrowserControl.DocumentCompleted += new WebBrowserDocumentCompletedEventHandler(webBrowserControl_DocumentCompleted); } void webBrowserControl_DocumentCompleted(object sender, WebBrowserDocumentCompletedEventArgs e) { ScrollToElement(_activeSegId); //set the CSS style for the curently selected segment webBrowserControl.Document.InvokeScript("setActiveStyle", new String[] { _activeSegId }); } protected void FireWindowSelectionChanged() { if (WindowSelectionChanged != null) { WindowSelectionChanged(null); } } /// <summary> /// open file for preview /// </summary> /// <param name="fileName"></param> public void OpenTarget(string fileName) { if (this.InvokeRequired) { this.Invoke(new System.Action<string>(OpenTarget), fileName); } else { webBrowserControl.Navigate(fileName); webBrowserControl.Refresh(); } } public void Close() { // The Filter Framework takes care of cleaning up temporary files. } /// <summary> /// construct a segment reference from _jumpparagraphID and _jumpsegmentID, /// which is returned when user clicks the corresponding segment in the preview control /// </summary> /// <returns></returns> public SegmentReference GetSelectedSegment() { if (_jumpsegmentID != null && _jumpsegmentID != String.Empty) { SegmentReference segRef = new SegmentReference(default(FileId), new ParagraphUnitId(_jumpparagraphID), new SegmentId(_jumpsegmentID)); return segRef; } return null; } /// <summary> /// public method that is called from the preview control /// when a segment has been selected /// </summary> /// <param name="segmentId"></param> public void SelectSegment(string paragraphUnitID, string segmentID) { // set global variables for jumping into clicked segment _jumpparagraphID = paragraphUnitID; _jumpsegmentID = segmentID; _segmentSelectedFromBrowser = true; FireWindowSelectionChanged(); } /// <summary> /// scroll to the active segment inside the control /// </summary> /// <param name="elemName"></param> private void ScrollToElement(String elemName) { if (webBrowserControl.Document != null) { HtmlDocument doc = webBrowserControl.Document; HtmlElementCollection elems = doc.All.GetElementsByName(elemName); if (elems != null && elems.Count > 0) { HtmlElement elem = elems[0]; elem.ScrollIntoView(true); } } } /// <summary> /// called when segment is confirmed and SDL Trados Studio jumps into next segment /// </summary> public void JumpToActiveElement() { if (this.InvokeRequired) { this.Invoke(new MethodInvoker(JumpToActiveElement)); } } /// <summary> /// scroll to and highlight active segment in the preview control /// </summary> /// <param name="segment"></param> public void ScrollToSegment(SegmentReference segment) { if (this.InvokeRequired) { this.Invoke(new System.Action<SegmentReference>(ScrollToSegment), segment); } else { if (!_segmentSelectedFromBrowser) { ScrollToElement(segment.SegmentId.Id); // handle situations in which the document was opened // and no active segment has been set yet. if (_activeSegId == null || _activeSegId == "") { _activeSegId = segment.SegmentId.Id; // select the CSS style for the curently selected segment webBrowserControl.Document.InvokeScript("setActiveStyle", new String[] { segment.SegmentId.Id }); } } if (_activeSegId != segment.SegmentId.Id) { // reset the CSS style back from active to normal for the previously selected segment if (_activeSegId != null || _activeSegId == "") { webBrowserControl.Document.InvokeScript("setNormalStyle", new String[] { _activeSegId }); } // set the CSS style for the curently selected segment webBrowserControl.Document.InvokeScript("setActiveStyle", new String[] { segment.SegmentId.Id }); } // set the active segment id _activeSegId = segment.SegmentId.Id; if (_segmentSelectedFromBrowser) { _segmentSelectedFromBrowser = false; } } } } }
