Building the project will generate a *.sdlplugin file, in our example Sdl.Sdk.LanguagePlatform.Samples.ListProvider.csproj.sdlplugin, which will be placed inside your build output path. The *.sdlplugin file is technically speaking a ZIP archive that contains the required plug-in components such as the plug-in binary (*.dll itself), the resources file, the manifest etc. For our example, the *.sdlplugin file will contain the following:

• The plug-in assembly, e.g. Sdl.Sdk.LanguagePlatform.Samples.ListProvider.dll
• The plug-in manifest, e.g. Sdl.Sdk.LanguagePlatform.Samples.ListProvider.plugin.xml. The manifest lists information on any extension classes that the plug-in contains. It is this manifest, which will be created during the build process, that declares the assembly and the corresponding extension classes to SDL Trados Studio 2017. By deleting this manifest *.xml file you would actually deactivate the plug-in and 'hide' it from the application.
• The plug-in resources file, e.g. Sdl.Sdk.LanguagePlatform.Samples.ListProvider.plugin.resources. This resources file contains all the localizable strings and images referred to within the plug-in manifest, and is compiled from PluginResources.resx (see also The Resources File).

In order for SDL Trados Studio 2017 to pick up the plug-in package and to extract it, the following folders need to be available on your hard drive:

For Windows XP:

C:\Documents and Settings\[UserName]\Application Data\SDL\SDL Trados Studio\14\Plugins\Packages

and

C:\Documents and Settings\[UserName]\Application Data\SDL\SDL Trados Studio\14\Plugins\Unpacked

For Windows Vista/Windows 7/Windows 8:

C:\Users\[UserName]\AppData\Roaming\SDL\SDL Trados Studio\14\Plugins\Packages

and

C:\Users\[UserName]\AppData\Roaming\SDL\SDL Trados Studio\14\Plugins\Unpacked

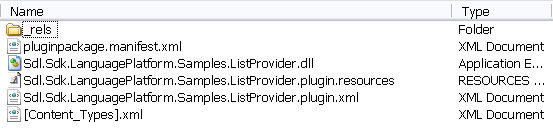

Make sure that you place the *.sdlplugin file into the sub-folder Packages and launch SDL Trados Studio 2017. During startup of SDL Trados Studio 2017 the content of the package will be automatically extracted to the Unpacked sub-folder, as illustrated below:

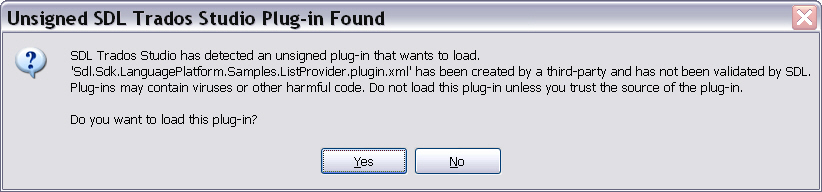

Upon start-up SDL Trados Studio 2017 will load the unpacked plug-in and show the following message, which you can confirm with Yes, so that the plug-in gets loaded. This message appears when loading plug-ins that have not been certified by SDL, which could potentially be unsafe. The message can be avoided by submitting your plug-in to SDL for certification.

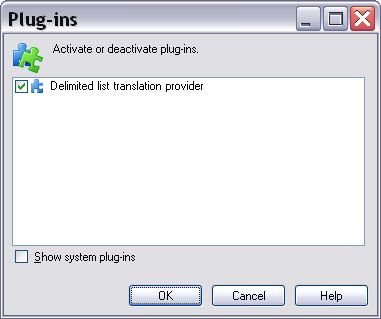

After loading the plug-in in SDL Trados Studio 2017, you can see the the plug-in by raising the corresponding dialog box through the menu command Tools -> Plug-ins. The Plug-ins dialog box should list the name of your newly created plug-in:

Also, when you open a document for translation, your plug-in should now be listed under the available translation providers:

Note
If a user clicks No when the plug-in security message is displayed during start-up of SDL Trados Studio 2017, the plug-in will not be shown in the application.

Please see also Setting up a Development Machine.
